SPECIFICATIONS

Battery Capacity(mAh): -

Battery Included: No

Brand Name: LEIXEN

Certification: CE

Dimensions: 120*85*40mm

Frequency Range: 136-174&400-480MHz

Hign-concerned Chemical: None

Is_Display: Yes

Material: Plastic+metal

Maximum Range: 10km-50km

Model Number: VV-898S-25W

Origin: Mainland China

Output Power(w): 10w-25w

Storage Channel: 199

Type: Two Way Radio

Walkie Talkie Type: Car

Waterproof / Water-Resistant: IP55

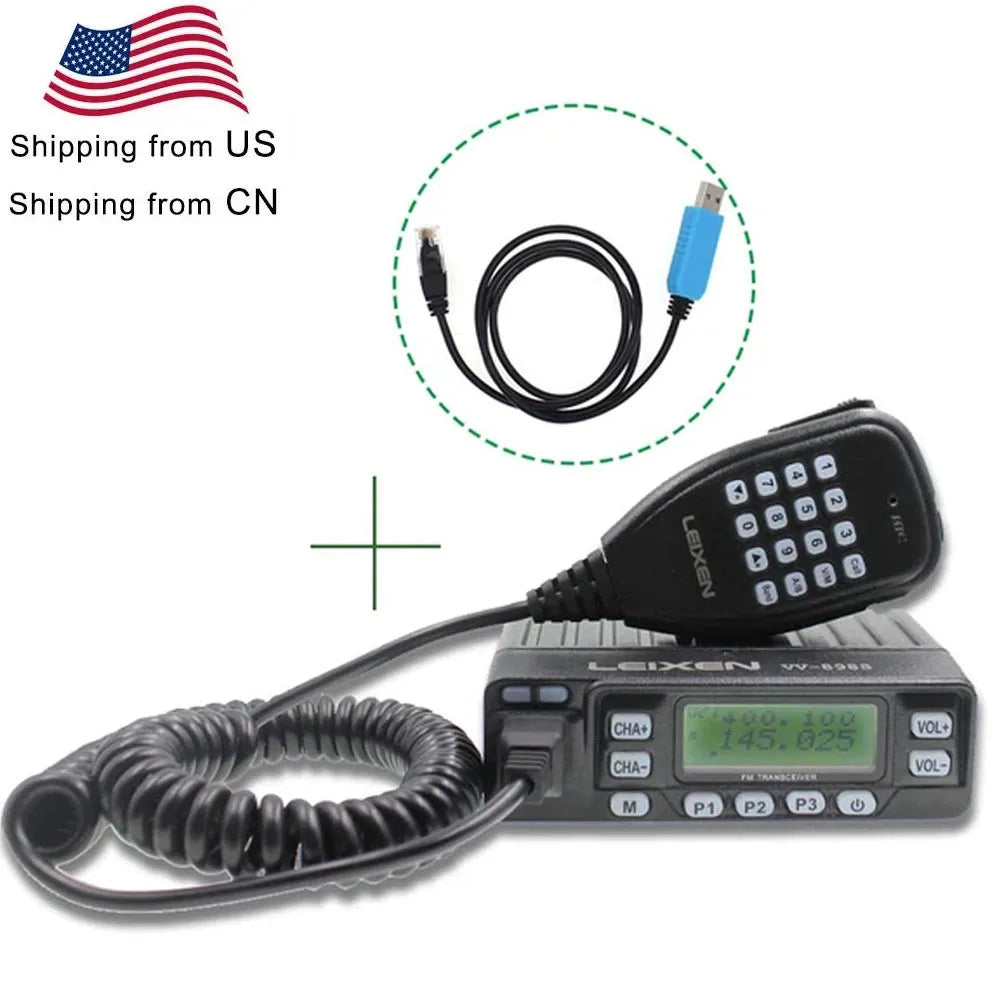

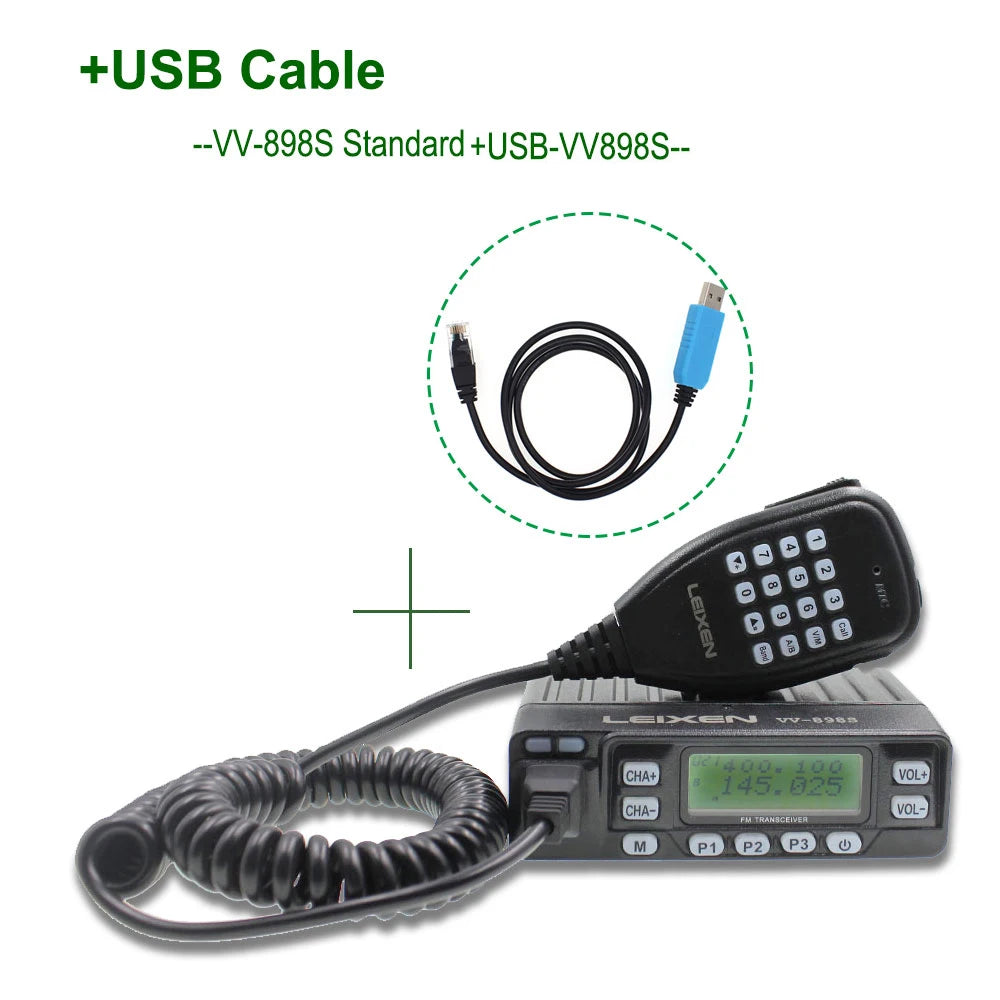

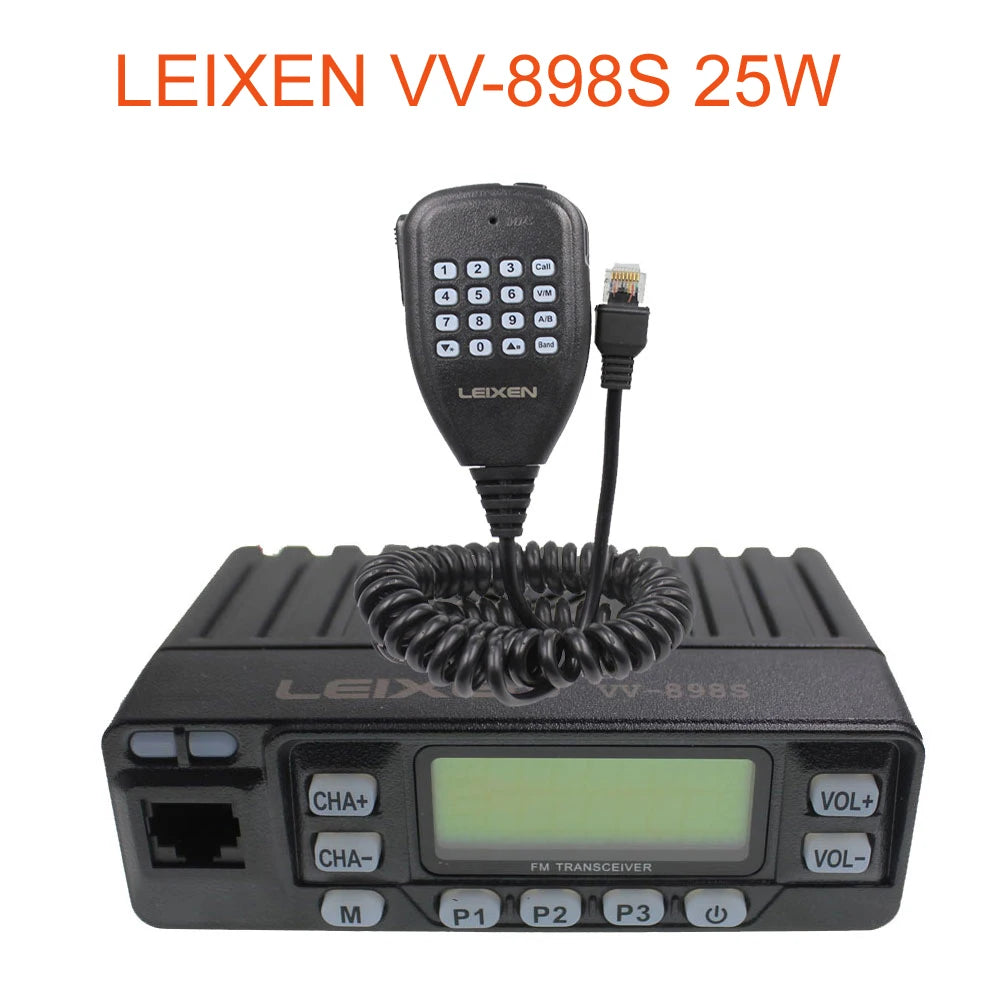

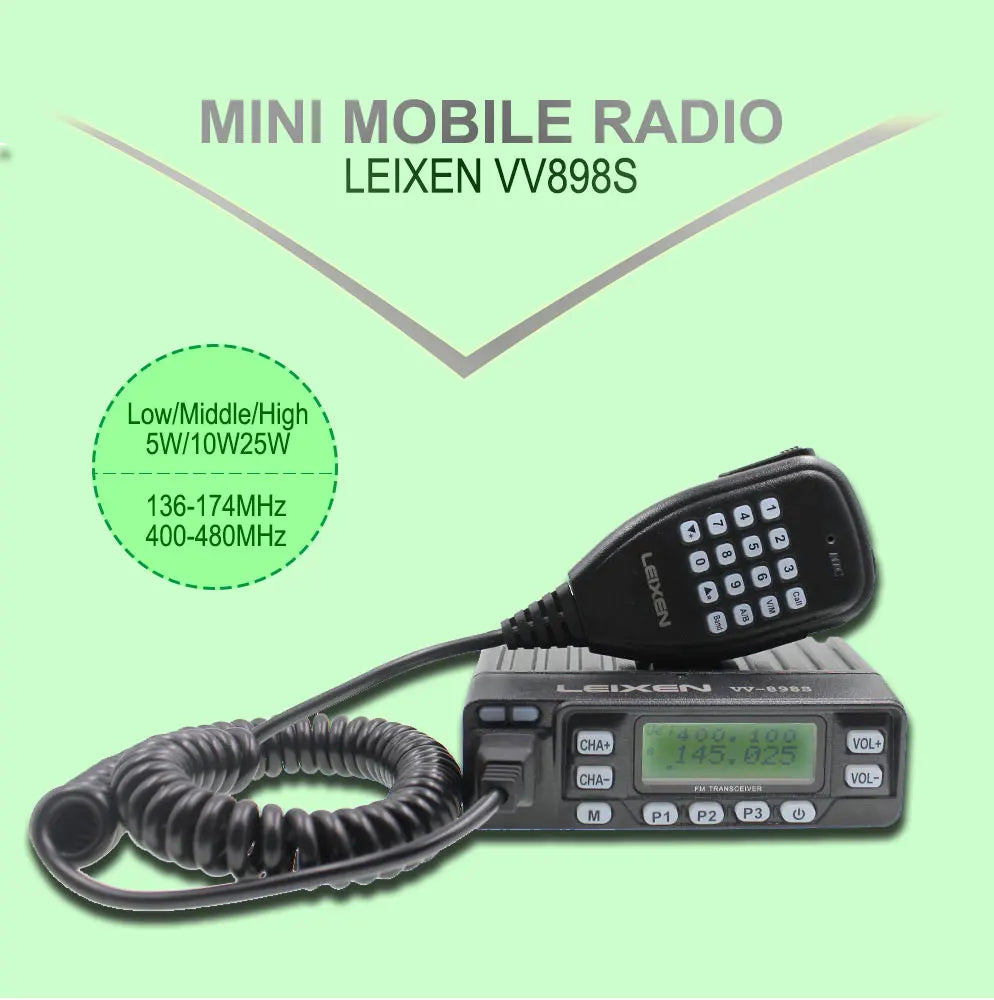

LEIXEN VV-898S 25W Dual band 144/430MHz Mobile Transceive Amateur Ham Radio



Note: if you need software, please contact us.



1. Menu 2： APRO（Scrambler and compander functions) are canceled.

2. Menu 18: The function Keypad(to choose microphone with Keypad or without Keypad)

changed to Key-SPK(to choose speaker built-in on the radio or on an external

Microphone). ON=Speaker on external microphone, OFF=speaker built-in on the radio.

3. The Wireless Change Frequency function on page 38 canceled.

4. Additional Tips：The keys on the keypad of microphone do not have long press

function, if you need to go fast when you choose the value of CT/DCS or edit a

channel name, please press the CHA+/CHA-，or VOL+/VOL- on the front panel of the

radio.



Main Feature:

1. Dual band: TX:136-174MHz/400-480MHz

RX:136-174MHz/400-520MHz/200-260MHz/87.5-108MHz

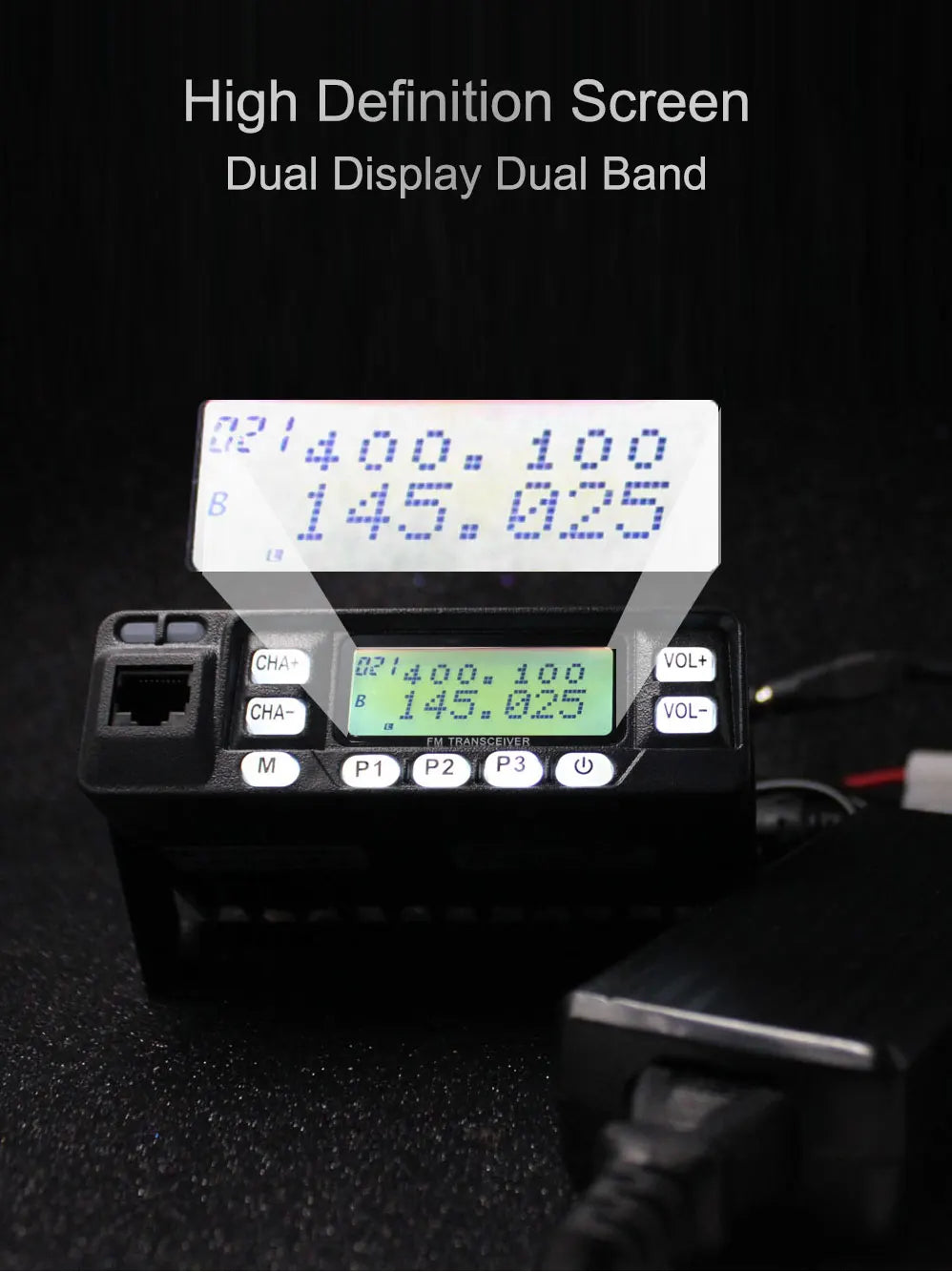

2. Dual Reception/Dual Display

3. APRO: Voice Companding and Scrambler

4. Multi silent mode (QT/QTADT/QTXDT) 214 groups DCS/58 groups CTCSS

5. DTMF encoding and DTMF decoding

6. PTT ID(Voice broadcast PTT ID)

7. All calls, group calls and selective calls

8. RX Inhibit/ RXTX Inhibit/Revive(Stun/Kill/Revive)

9. Monitor, SMQ,MOLO

10. Scan/Scan add

11. Channel name edit available

12. 199 memory channels

13. High/Low power(25W/10W/4W)

14. APO(Auto Power Off)

15. TOT(Time-out timer)

16. Font Set(Big/Small)

17. VOX(Level adjustable)

18. Busy channel lockout

19. Keyboard lock (Auto/Manual)

20. Multi scan mode (TO/CO)

21. Channel steps (2.5K/5K/6.25K/10K/12.5K/25K)

22. Wide/Narrow band selection (25KHz/12.5KHz)

23. TX Stop

24. Emergency Alarm

25. RPT Offset(Single/RPT+/RPT-)

26. Reverse frequency function/ Talk Around/1750Hz burst tone

27. Lease Function(can program lease time of the radio at a exact time)

28. Input frequency by using Keypad

29. Four key programmable

30. Wireless changing frequency

31. Timepiece

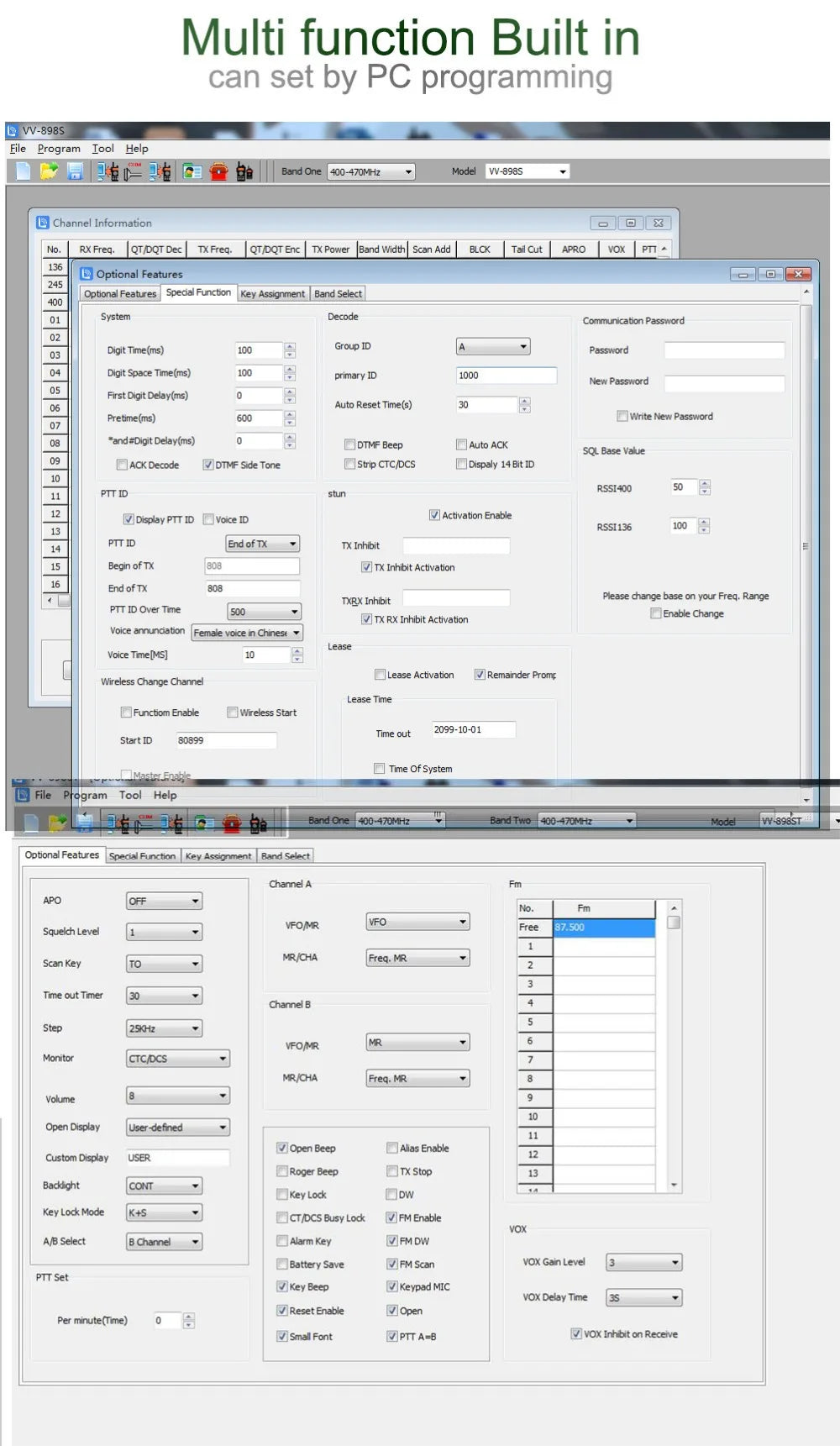

32. PC software disable frequency input

33. Passwords for menu functions Set

34. PTT Times per Minutes Set

35. All/Function reset

36. 13.8V DC Power Supply

37. Size: 120*85*40mm
